Aluminum exterior louver Aerofoil profile aluminum louver with oval shape for facade curtain wall

Name: Aluminum exterior louver Aerofoil profile aluminum louver with oval shape for facade curtain wall
Brand: M-CITY
Price: 50 USD

Brand Name : M-CITY

Model Number : MCT-AF300

Certification : ISO:9000

Place of Origin : China

MOQ : 100square meters

Price : USD50-150.00/sq,m

Payment Terms : T/T, L/C

Supply Ability : 9000sq.m

Delivery Time : 15-30days

Packaging Details : export packing, metal cases, plywood cases

Materials : aluminum alloy

Size : 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm

Surface treatment : powder coated, PVDF paint, Anodized

Coating : Akzo Nobel, PPG

Pattern : Horizontal, Vertical

Type : fixed system

Color : Any RAL colors, wood grain color, stone color

accessoires : endcaps, support frame

Application : facade, window, curtain wall, fence, sunshade

Email : mcityalu@sina.com

Contact Now

Aluminum exterior louver Powder coated Architectural Aerofoil profile aluminum louver with oval shape for facade curtain wall

Aluminum exterior louver Aerofoil profile aluminum louver with oval shape for facade curtain wall

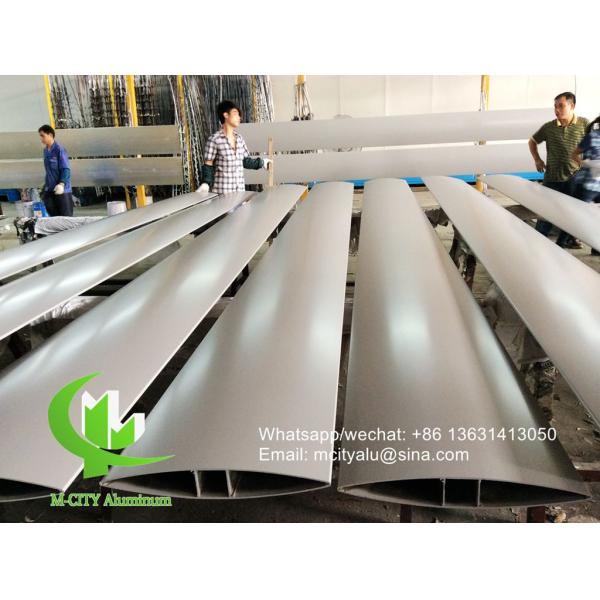

M-CITY Aerofoil/Airfoil Louver blade series The M-CITY aerofoil (fin) louvers are based on Aluminum extrusion profile (6063-T5/T6). Most are ellipse shape aluminum profile. Deflect thermal gain from incident sun, integrating light control into the building envelope. Not only they deliver outstanding functionality, but will also help architects create a distinctive look for the building surface. Well-designed louver configurations can be as striking as they are effective, shading the facade against low or high sun angles while making an aesthetic statement. As with any system, design considerations such as louver size and composition will affect performance. It can help you improve the energy efficiency of your projects.

Vertical louver Aerofoil system project in Hongkong.

Aluminum exterior louver Aerofoil profile aluminum louver with oval shape for facade curtain wall

	Installation ways Reference
A	Fix to the support frame with screw
B	Using Bracket and screw to the support frame
C	Using the Endcaps to fix on two ends
D	As per Architect’s design

The size from 100mm to 600mm are available.

Aluminum exterior louver Aerofoil profile aluminum louver with oval shape for facade curtain wall

M-CITY aerofoil louvers blade width from 100 mm to 600 mm tip to tip. Extruded louvers are more durable. more strength . Louver shapes, composition, and finish also can be used to create specific daylighting effects as well as establishing a different aesthetic. - Fabricated louvers can be created at nearly any size. - Aerofoil composition is typically metal (aluminum ), but many other options exist, including glass and wood. - M-CITY metal louvers typically have finishes include polyester powder coating and flurocarbon painting (PVDF paint) and Anodized. All resist damage to sun or weather.

Aluminum exterior louver Aerofoil profile aluminum louver with oval shape for facade curtain wall

Materials:	Aluminum extrusion (6063-T5/T6)
Size/Width:	100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm
Length:	From 1000mm-7000mm
Thickness:	From 1.0mm-3.0mm
Surface finish:	Powder coated, flurocarbon paint, Anodized
Color:	Any RAL colors and wooden grain colors are available.
Coating:	Akzo Nobel, PPG, etc.
Applications:	Commercial Building, School, Metro, Raiway station, Office, Residential, etc.

We also manufacture aluminum decorative panel (aluminum solid panel) for building facade, curtain wall, cladding, fence, window, screen, balcony etc.

Welcome to send us drawing and inquiry, we will try our best to support your project.

Aluminum exterior louver Aerofoil profile aluminum louver with oval shape for facade curtain wall F

For fence decorative

Aluminum exterior louver Aerofoil profile aluminum louver with oval shape for facade curtain wall
